JSTL與EL表達式 · JavaWeb講義新編2020

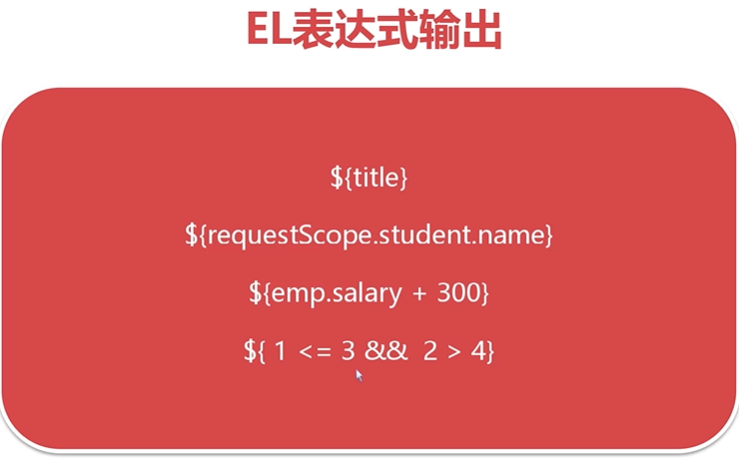

# JSTL與EL表達式 [TOC] ## 導學在之前的學習中，我們發現雖然可以在Jsp中使用Java語言，但是HTML和Java的結合好像不是那么緊密，而且操作HTML元素好像也不是那么方便。那么有沒有一種簡單的方式，來獲取值并操作HTML元素呢？ ## EL表達式 EL表達式是一種非常簡單的數據表達方式，EL（Expression Language）表達式語言的出現就是為了簡化JSP的輸出。在早期的Jsp中，沒有EL表達式，所有的程序都要使用out對象來一行行的輸出。語法： ~~~ ${表達式} ~~~ 實例： ~~~ public class Student { private String name; private String mobile; public String getName() { return name; } public void setName(String name) { this.name = name; } public String getMobile() { return mobile; } public void setMobile(String mobile) { this.mobile = mobile; } public String toString() { return name + ":" + mobile; } } ~~~ ~~~ @WebServlet("/info") public class StudentServlet extends HttpServlet { private static final long serialVersionUID = 1L; public StudentServlet() { super(); } protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { Student stu = new Student(); stu.setName("子墨"); stu.setMobile(null); String grade = "A"; request.setAttribute("grade", grade); request.setAttribute("stu", stu); request.getRequestDispatcher("/info.jsp").forward(request, response); } } ~~~ ~~~ <%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8" import = "com.dodoke.el.Student"%> <!DOCTYPE html> <html> <head> <meta charset="UTF-8"> <title>Insert title here</title> </head> <body> <% Student stu = (Student)request.getAttribute("student"); String grade = (String)request.getAttribute("grade"); out.println("<h1>姓名：" + stu.getName() + "</h1>"); out.println("<h2>手機：" + stu.getMobile() + "</h2>"); out.println("<h2>評級:" + grade + "</h2>"); %> </body> </html> ~~~ EL表達式版 ~~~ <%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <!DOCTYPE html> <html> <head> <meta charset="UTF-8"> <title>Insert title here</title> </head> <body> <h1>姓名：${requestScope.student.name }</h1> <h2>手機：${requestScope.student.mobile }</h2> <h2>評級：${requestScope.grade }</h2> </body> </html> ~~~ 通過以上的例子，我們可以看出EL表達式的應用非常簡單，而且還不需要導入要使用的類，下面我們就來看看EL表達式的使用細節。 ### EL的作用域對象 EL表達式包含四種不同的作用域： * pageScope：從當前頁面取值 * requestScope：從當前請求中獲取屬性值 * sessionScope：從當前會話中獲取屬性值 * applicationScope：從當前應用獲取全局屬性值這四種作用域，作用范圍從小到大，而且這四種作用域也對應了我們四種取值范圍。當我們忽略書寫這四種作用域時，el表達式將按作用域從小到大的順序依次嘗試獲取。 ~~~ @WebServlet("/info") public class StudentServlet extends HttpServlet { private static final long serialVersionUID = 1L; public StudentServlet() { super(); } protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { Student stu = new Student(); stu.setName("子墨"); stu.setMobile(null); String grade = "A"; HttpSession session = request.getSession(); session.setAttribute("grade", grade); session.setAttribute("stu", stu); //request.setAttribute("grade", grade); //request.setAttribute("stu", stu); request.getRequestDispatcher("/info.jsp").forward(request, response); } } ~~~ ~~~ <%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <!DOCTYPE html> <html> <head> <meta charset="UTF-8"> <title>Insert title here</title> </head> <body> <h1>姓名：${sessionScope.student.name }</h1> <h2>手機：${sessionScope.student.mobile }</h2> <h2>評級：${sessionScope.grade }</h2> </body> </html> ~~~ 問：代碼修改為這樣以后該如何，得到的結果是多少？ ~~~ protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { Student stu = new Student(); stu.setName("子墨"); stu.setMobile(null); String grade = "A"; request.setAttribute("grade","B"); request.getServletContext().setAttribute("grade","C"); HttpSession session = request.getSession(); session.setAttribute("grade", grade); session.setAttribute("stu", stu); //request.setAttribute("grade", grade); //request.setAttribute("stu", stu); request.getRequestDispatcher("/info.jsp").forward(request, response); } ~~~ ### EL表達式輸出語法： ~~~ ${[作用域].屬性名.[子屬性名]} ~~~ el表達式支持將運算結果輸出，也支持絕大多數對象的輸出，本質是執行toString方法，也就是我們可以嘗試重寫toString方法，輸出對象的信息。 ![](https://img.kancloud.cn/fc/15/fc15564905e4a020f7493ee67794d158_739x470.png) ### 輸出參數要求：查找并總結getParameter()方法和getAttribute()方法的區別在Servlet中我們可以通過getParameter()方法來實現獲取前端瀏覽器的參數，那么如何使用el表達式來接收其他頁面傳遞的參數呢？ EL表達式內置param對象來簡化參數的輸出，它的語法： ~~~ ${param.參數名} ~~~ ~~~ <%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <!DOCTYPE html> <html> <head> <meta charset="UTF-8"> <title>Insert title here</title> </head> <body> <h1>姓名：${sessionScope.student.name }</h1> <h2>手機：${sessionScope.student.mobile }</h2> <h2>${param.teacher}</h2> <h2>評級：${sessionScope.grade }</h2> </body> </html> ~~~ ## JSTL標簽庫 * JSTL(JSP Standard Tag Library),JSP標準標簽庫 * JSTL用于簡化JSP開發，提高代碼的可讀性和可維護性 * JSTL由SUN(Oracle)定義規范，由Apache Tomcat團隊實現 JSTL可以幫助我們實現表格的循環，判斷，數據的迭代等功能。 ### JSTL下載與安裝 el表達式，不需要下載任何的Jar包，這是因為現版本的jsp內置el表達式的實現，但是JSTL就需要下載Jar包并安裝到項目中。下載地址：[http://tomcat.apache.org/](http://tomcat.apache.org/) JSTL 1.2.5組件介紹： ![](https://img.kancloud.cn/b8/be/b8bebd4178b0f2936b06dd43dd52b90b_601x194.png) 需要下載的是一個spec的包，一個是impl包，剩下的包，el的包是為了支持el表達式，現在el已經內置標簽庫了，所以不需要下載導入即可使用。第四個jar包是為了兼容1.0以下的包而使用的我們現在使用的是1.2.5因此無需引入。 ![](https://img.kancloud.cn/22/97/22970dbf9e7b7502735827712a8f51e8_1346x671.png) ![](https://img.kancloud.cn/df/b3/dfb3c0ee0a88b79782fb7d6c94a21e27_1354x673.png) **安裝JSTL** JSTL的兩種安裝方式： 1. 將Jar文件復制到工程的/WEB-INF/lib目錄下（對單體項目進行設置-推薦） 2. 將Jar文件復制到Tomcat安裝目錄的lib目錄（全局設置） ### JSTL的標簽庫 JSTL按功能劃分，可分為五類標簽庫： ![](https://img.kancloud.cn/9f/04/9f0447b491015d88461302792e3e5bef_553x261.png) 除了頭兩種，剩下的已經不使用了，因為在Java中提供了更好的支持。 **引用JSTL核心庫** 核心標簽庫，提供了JSTL的基礎功能，引用時需要在頁面上引入該核心庫 ~~~ <%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%> ~~~ ### JSTL判斷標簽 JSTL核心庫提供了兩組判斷的標簽： * `<c:if>`用于單分支判斷 * `<c:choose>`、`<c:when>`、`<c:otherwise>`用于多分支判斷 ~~~ @WebServlet("/jstl") public class JstlServlet extends HttpServlet { private static final long serialVersionUID = 1L; public JstlServlet() { super(); } protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { request.setAttribute("score", 58); request.setAttribute("grade", "B"); request.getRequestDispatcher("/core.jsp").forward(request, response); } } ~~~ ~~~ <%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>   <%@ taglib uri = "http://java.sun.com/jsp/jstl/core" prefix = "c" %> <!DOCTYPE html> <html> <head> <meta charset="UTF-8"> <title>Insert title here</title> </head> <body> <h1>${requestScope.score}</h1>  <c:if test = "${score >= 60 }"> <h1 style = "color:green">恭喜，你已通過測試</h1> </c:if> <c:if test = "${score < 60 }"> <h1 style = "color:red">對不起，再接再厲</h1> </c:if>  ${grade } <c:choose>  <c:when test="${grade == 'A'}"> <h2>你很優秀</h2> </c:when> <c:when test="${grade == 'B' }"> <h2>不錯呦</h2> </c:when> <c:when test="${grade == 'C' }"> <h2>水平一般，需要提高</h2> </c:when> <c:when test = "${grade == 'D'}"> <h2>需要努力啦，不要氣餒</h2> </c:when> <c:otherwise> <h2>一切隨緣吧</h2> </c:otherwise> </c:choose> </body> </html> ~~~ ### JSTL遍歷標簽 `<c:forEach>`標簽用于遍歷集合（Collection）中的每一個對象。 ~~~ public class Company { private String cname; private String url; public Company(String cname , String url) { this.cname = cname; this.url = url; } public String getCname() { return cname; } public void setCname(String cname) { this.cname = cname; } public String getUrl() { return url; } public void setUrl(String url) { this.url = url; } } ~~~ ~~~ @WebServlet("/jstl") public class JstlServlet extends HttpServlet { private static final long serialVersionUID = 1L; public JstlServlet() { super(); } protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { request.setAttribute("score", 58); request.setAttribute("grade", "B"); List list = new ArrayList(); list.add(new Company("騰訊" , "www.tencent.com")); list.add(new Company("百度" , "www.baidu.com")); list.add(new Company("渡課網" , "www.dodoke.com")); request.setAttribute("companys", list); request.getRequestDispatcher("/core.jsp").forward(request, response); } } ~~~ ~~~ <%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>   <%@ taglib uri = "http://java.sun.com/jsp/jstl/core" prefix = "c" %> <!DOCTYPE html> <html> <head> <meta charset="UTF-8"> <title>Insert title here</title> </head> <body> <h1>${requestScope.score}</h1>  <c:if test = "${score >= 60 }"> <h1 style = "color:green">恭喜，你已通過測試</h1> </c:if> <c:if test = "${score < 60 }"> <h1 style = "color:red">對不起，再接再厲</h1> </c:if>  ${grade } <c:choose>  <c:when test="${grade == 'A'}"> <h2>你很優秀</h2> </c:when> <c:when test="${grade == 'B' }"> <h2>不錯呦</h2> </c:when> <c:when test="${grade == 'C' }"> <h2>水平一般，需要提高</h2> </c:when> <c:when test = "${grade == 'D'}"> <h2>需要努力啦，不要氣餒</h2> </c:when> <c:otherwise> <h2>一切隨緣吧</h2> </c:otherwise> </c:choose>  <c:forEach varStatus="idx" items = "${requestScope.companys }" var = "c"> <h2 style="color:green">${idx.index + 1}-${c.cname }-${c.url }</h2> </c:forEach> </body> </html> ~~~ ### fmt格式化標簽庫 fmt格式化標簽庫可以使數據按照我們設想的格式進行輸出。它的引用地址為： ~~~ http://java.sun.com/jsp/jstl/fmt ~~~ 在這個標簽庫中，主要學習兩種格式化語句： **格式化日期標簽** `<fmt:formateDate value="" pattern="">` **格式化數字標簽** `<fmt:formatNumber value="" pattern="">` ~~~ <%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <%@ taglib uri="http://java.sun.com/jsp/jstl/fmt" prefix="fmt" %> <%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c" %> <!DOCTYPE html> <html> <head> <meta charset="UTF-8"> <title>Insert title here</title> </head> <body> <% //就在當前頁面設置數據源，不再創建servlet了 request.setAttribute("amt", 1987654.326); request.setAttribute("now", new java.util.Date()); request.setAttribute("html", "<a href='index.html'>index</a>"); request.setAttribute("nothing", null); %> <h2>${now }</h2>  <h2>  <fmt:formatDate value="${requestScope.now }" pattern="yyyy年MM月dd日 HH時mm分ss秒 SSS毫秒" /> </h2> <h2>${amt }</h2> <h2>￥<fmt:formatNumber value = "${amt }" pattern="0,000.00"></fmt:formatNumber>元</h2>  <h2>null默認值：<c:out value="${nothing }" default="無"></c:out> </h2>  <h2><c:out value="${ html}" escapeXml="true"></c:out></h2> </body> </html> ~~~ ## 綜合訓練通常在進行實際項目的開發時，前端工程師會發送給我們一個靜態的頁面，而我們要做的就是將這樣的靜態頁面變為動態頁面。靜態演示Demo下載地址：鏈接: https://pan.baidu.com/s/1HFMuCGeg5tox-1MWzGs_vQ 提取碼: 2j2z 實例： ~~~ public class Employee { private Integer empno; private String ename; private String department; private String job; private Float salary; public Employee(Integer empno, String ename, String department, String job, Float salary) { super(); this.empno = empno; this.ename = ename; this.department = department; this.job = job; this.salary = salary; } public Integer getEmpno() { return empno; } public void setEmpno(Integer empno) { this.empno = empno; } public String getEname() { return ename; } public void setEname(String ename) { this.ename = ename; } public String getDepartment() { return department; } public void setDepartment(String department) { this.department = department; } public String getJob() { return job; } public void setJob(String job) { this.job = job; } public Float getSalary() { return salary; } public void setSalary(Float salary) { this.salary = salary; } } ~~~ ~~~ @WebServlet("/list") public class ListServlet extends HttpServlet { private static final long serialVersionUID = 1L; public ListServlet() { super(); } protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { ServletContext context = request.getServletContext(); if(context.getAttribute("employees") == null) { List list = new ArrayList(); Employee emp = new Employee(7731 , "劉志敏" , "市場部" , "客戶代表" , 10000f); list.add(emp); list.add(new Employee(8871 , "張倩" , "研發部" , "運維工程師" , 8000f)); context.setAttribute("employees", list); } request.getRequestDispatcher("/employee.jsp").forward(request, response); } } ~~~ ~~~ <%@ page contentType="text/html;charset=utf-8"%> <%@ taglib uri = "http://java.sun.com/jsp/jstl/core" prefix = "c" %> <%@ taglib uri = "http://java.sun.com/jsp/jstl/fmt" prefix = "fmt" %> <!DOCTYPE html> <html> <head> <meta charset="UTF-8"> <meta name="viewport" content="width=device-width,initial-scale=1"> <title>員工列表</title> <link href="css/bootstrap.css" type="text/css" rel="stylesheet"></link> <script type="text/javascript" src="js/jquery-1.11.1.min.js"></script> <script type="text/javascript" src="js/bootstrap.js"></script> <style type="text/css"> .pagination { margin: 0px } .pagination > li > a, .pagination > li > span { margin: 0 5px; border: 1px solid #dddddd; } .glyphicon { margin-right: 3px; } .form-control[readonly] { cursor: pointer; background-color: white; } #dlgPhoto .modal-body{ text-align: center; } .preview{ max-width: 500px; } </style> <script> $(function () { $("#btnAdd").click(function () { $('#dlgForm').modal() }); }) </script> </head> <body> <div class="container"> <div class="row"> <h1 style="text-align: center">dodoke員工信息表</h1> <div class="panel panel-default"> <div class="clearfix panel-heading "> <div class="input-group" style="width: 500px;"> <button class="btn btn-primary" id="btnAdd"><span class="glyphicon glyphicon-zoom-in"></span>新增 </button> </div> </div> <table class="table table-bordered table-hover"> <thead> <tr> <th>序號</th> <th>員工編號</th> <th>姓名</th> <th>部門</th> <th>職務</th> <th>工資</th> <th> </th> </tr> </thead> <tbody> <c:forEach items = "${applicationScope.employees}" var = "emp" varStatus="idx" > <tr> <td>${idx.index + 1}</td> <td>${emp.empno }</td> <td>${emp.ename }</td> <td>${emp.department }</td> <td>${emp.job }</td> <td style="color: red;font-weight: bold">￥<fmt:formatNumber value = "${emp.salary }" pattern="0,000.00" ></fmt:formatNumber></td> </tr> </c:forEach> </tbody> </table> </div> </div> </div>  <div class="modal fade" tabindex="-1" role="dialog" id="dlgForm"> <div class="modal-dialog" role="document"> <div class="modal-content"> <div class="modal-header"> <button type="button" class="close" data-dismiss="modal" aria-label="Close"><span aria-hidden="true">×</span> </button> <h4 class="modal-title">新增員工</h4> </div> <div class="modal-body"> <form action="/employee/create" method="post" > <div class="form-group"> <label >員工編號</label> <input type="text" name="empno" class="form-control" id="empno" placeholder="請輸入員工編號"> </div> <div class="form-group"> <label >員工姓名</label> <input type="text" name="ename" class="form-control" id="ename" placeholder="請輸入員工姓名"> </div> <div class="form-group"> <label>部門</label> <select id="dname" name="department" class="form-control"> <option selected="selected">請選擇部門</option> <option value="市場部">市場部</option> <option value="研發部">研發部</option> <option value="后勤部">后勤部</option> </select> </div> <div class="form-group"> <label>職務</label> <input type="text" name="job" class="form-control" id="sal" placeholder="請輸入職務"> </div> <div class="form-group"> <label >工資</label> <input type="text" name="salary" class="form-control" id="sal" placeholder="請輸入工資"> </div> <div class="form-group" style="text-align: center;"> <button type="submit" class="btn btn-primary">保存</button> </div> </form> </div> </div> </div> </div> </body> </html> ~~~ ~~~ @WebServlet("/create") public class CreateServlet extends HttpServlet { private static final long serialVersionUID = 1L; public CreateServlet() { super(); } protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { request.setCharacterEncoding("UTF-8"); String empno = request.getParameter("empno"); String ename = request.getParameter("ename"); String department = request.getParameter("department"); String job = request.getParameter("job"); String salary = request.getParameter("salary"); System.out.println(empno); Employee emp = new Employee(Integer.parseInt(empno) , ename , department , job , Float.parseFloat(salary)); ServletContext context = request.getServletContext(); List employees = (List)context.getAttribute("employees"); employees.add(emp); context.setAttribute("employees", employees); request.getRequestDispatcher("/employee.jsp").forward(request, response); } } ~~~
