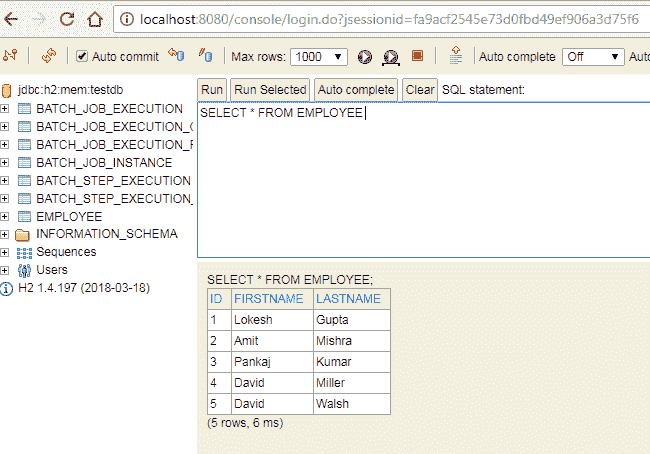

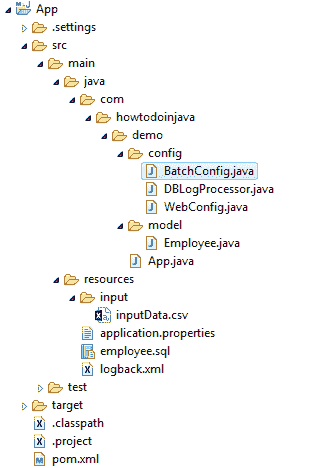

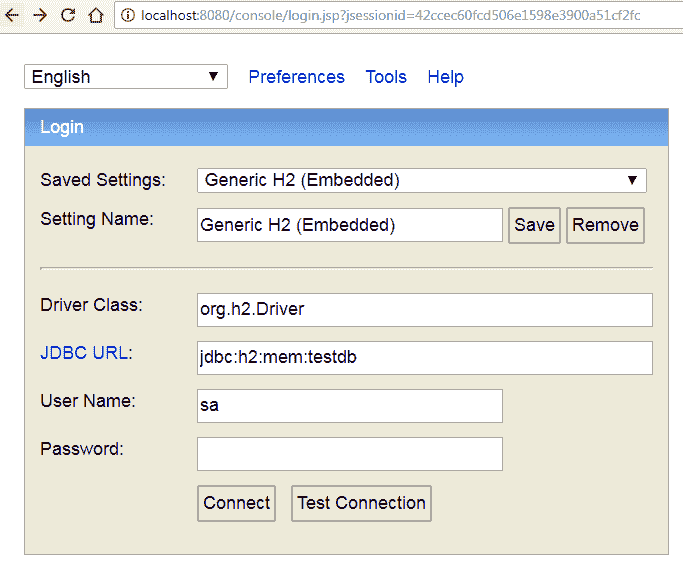

# Spring Batch CSV 到數據庫 – Java 注解配置示例 > 原文： [https://howtodoinjava.com/spring-batch/csv-to-database-java-config-example/](https://howtodoinjava.com/spring-batch/csv-to-database-java-config-example/) 學習使用 Spring Batch 從 CSV 文件讀取記錄，并使用`JdbcBatchItemWriter`插入數據庫。 我正在使用嵌入式數據庫 H2 演示此示例。 ## 項目概況 在此應用程序中，我們將執行以下任務： 1. 使用[`FlatFileItemReader`](https://docs.spring.io/spring-batch/4.0.x/api/org/springframework/batch/item/file/FlatFileItemReader.html)從 CSV 文件讀取員工記錄 2. 配置 H2 數據庫并在其中創建`EMPLOYEE`表 3. 用[`JdbcBatchItemWriter`](https://docs.spring.io/spring-batch/3.0.x/apidocs/org/springframework/batch/item/database/JdbcBatchItemWriter.html)將員工記錄寫入`EMPLOYEE`表 4. 使用[`ItemProcessor`](https://docs.spring.io/spring-batch/trunk/apidocs/org/springframework/batch/item/ItemProcessor.html)將日志項插入數據庫 5. 使用 H2 控制臺驗證插入的記錄 #### 項目結構  包結構 ## Maven 依賴 快速瀏覽構建此示例所需的 maven 依賴關系。 需要`spring-boot-starter-web`才能從瀏覽器窗口驗證 H2 控制臺中的數據。 `pom.xml` ```java <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd; <modelVersion>4.0.0</modelVersion> <groupId>com.howtodoinjava</groupId> <artifactId>App</artifactId> <version>0.0.1-SNAPSHOT</version> <packaging>jar</packaging> <name>App</name> <url>http://maven.apache.org</url> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.0.3.RELEASE</version> </parent> <properties> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-batch</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>com.h2database</groupId> <artifactId>h2</artifactId> <scope>runtime</scope> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build> <repositories> <repository> <id>repository.spring.release</id> <name>Spring GA Repository</name> <url>http://repo.spring.io/release</url> </repository> </repositories> </project> ``` ## CSV 讀取器和數據庫寫入器配置 1. 我們將使用`FlatFileItemReader`讀取 CSV 文件。 我們將使用涉及`DefaultLineMapper`，`DelimitedLineTokenizer`和`BeanWrapperFieldSetMapper`類的標準配置。 2. 為了將記錄寫入數據庫，我們將使用`JdbcBatchItemWriter`這是標準編寫器，用于在數據庫中為 Spring Batch 作業執行批處理查詢。 `BatchConfig.java` ```java package com.howtodoinjava.demo.config; import javax.sql.DataSource; import org.springframework.batch.core.Job; import org.springframework.batch.core.Step; import org.springframework.batch.core.configuration.annotation.EnableBatchProcessing; import org.springframework.batch.core.configuration.annotation.JobBuilderFactory; import org.springframework.batch.core.configuration.annotation.StepBuilderFactory; import org.springframework.batch.core.launch.support.RunIdIncrementer; import org.springframework.batch.item.ItemProcessor; import org.springframework.batch.item.database.BeanPropertyItemSqlParameterSourceProvider; import org.springframework.batch.item.database.JdbcBatchItemWriter; import org.springframework.batch.item.file.FlatFileItemReader; import org.springframework.batch.item.file.LineMapper; import org.springframework.batch.item.file.mapping.BeanWrapperFieldSetMapper; import org.springframework.batch.item.file.mapping.DefaultLineMapper; import org.springframework.batch.item.file.transform.DelimitedLineTokenizer; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.beans.factory.annotation.Value; import org.springframework.context.annotation.Bean; import org.springframework.context.annotation.Configuration; import org.springframework.core.io.Resource; import org.springframework.jdbc.datasource.embedded.EmbeddedDatabaseBuilder; import org.springframework.jdbc.datasource.embedded.EmbeddedDatabaseType; import com.howtodoinjava.demo.model.Employee; @Configuration @EnableBatchProcessing public class BatchConfig { @Autowired private JobBuilderFactory jobBuilderFactory; @Autowired private StepBuilderFactory stepBuilderFactory; @Value("classPath:/input/inputData.csv") private Resource inputResource; @Bean public Job readCSVFileJob() { return jobBuilderFactory .get("readCSVFileJob") .incrementer(new RunIdIncrementer()) .start(step()) .build(); } @Bean public Step step() { return stepBuilderFactory .get("step") .<Employee, Employee>chunk(5) .reader(reader()) .processor(processor()) .writer(writer()) .build(); } @Bean public ItemProcessor<Employee, Employee> processor() { return new DBLogProcessor(); } @Bean public FlatFileItemReader<Employee> reader() { FlatFileItemReader<Employee> itemReader = new FlatFileItemReader<Employee>(); itemReader.setLineMapper(lineMapper()); itemReader.setLinesToSkip(1); itemReader.setResource(inputResource); return itemReader; } @Bean public LineMapper<Employee> lineMapper() { DefaultLineMapper<Employee> lineMapper = new DefaultLineMapper<Employee>(); DelimitedLineTokenizer lineTokenizer = new DelimitedLineTokenizer(); lineTokenizer.setNames(new String[] { "id", "firstName", "lastName" }); lineTokenizer.setIncludedFields(new int[] { 0, 1, 2 }); BeanWrapperFieldSetMapper<Employee> fieldSetMapper = new BeanWrapperFieldSetMapper<Employee>(); fieldSetMapper.setTargetType(Employee.class); lineMapper.setLineTokenizer(lineTokenizer); lineMapper.setFieldSetMapper(fieldSetMapper); return lineMapper; } @Bean public JdbcBatchItemWriter<Employee> writer() { JdbcBatchItemWriter<Employee> itemWriter = new JdbcBatchItemWriter<Employee>(); itemWriter.setDataSource(dataSource()); itemWriter.setSql("INSERT INTO EMPLOYEE (ID, FIRSTNAME, LASTNAME) VALUES (:id, :firstName, :lastName)"); itemWriter.setItemSqlParameterSourceProvider(new BeanPropertyItemSqlParameterSourceProvider<Employee>()); return itemWriter; } @Bean public DataSource dataSource(){ EmbeddedDatabaseBuilder embeddedDatabaseBuilder = new EmbeddedDatabaseBuilder(); return embeddedDatabaseBuilder.addScript("classpath:org/springframework/batch/core/schema-drop-h2.sql") .addScript("classpath:org/springframework/batch/core/schema-h2.sql") .addScript("classpath:employee.sql") .setType(EmbeddedDatabaseType.H2) .build(); } } ``` 還創建`DBLogProcessor`，它將在寫入數據庫之前記錄員工記錄。 它是可選的。 `DBLogProcessor.java` ```java package com.howtodoinjava.demo.config; import org.springframework.batch.item.ItemProcessor; import com.howtodoinjava.demo.model.Employee; public class DBLogProcessor implements ItemProcessor<Employee, Employee> { public Employee process(Employee employee) throws Exception { System.out.println("Inserting employee : " + employee); return employee; } } ``` #### 模型類 `Employee.java` ```java package com.howtodoinjava.demo.config; package com.howtodoinjava.demo.model; public class Employee { String id; String firstName; String lastName; //Setter and getter methods } ``` #### 應用屬性 `application.properties` ```java #Disable batch job's auto start spring.batch.job.enabled=false spring.main.banner-mode=off #batch input files location input.dir=c:/temp/input ``` #### 日志配置 `logback.xml` ```java <?xml version="1.0" encoding="UTF-8"?> <configuration scan="true"> <appender name="consoleAppender" class="ch.qos.logback.core.ConsoleAppender"> <encoder> <charset>UTF-8</charset> <Pattern>%d{yyyy-MM-dd HH:mm:ss} %p %X{TXNID} - %m%n</Pattern> </encoder> </appender> <root level="INFO"> <appender-ref ref="consoleAppender" /> </root> </configuration> ``` ## 配置 H2 數據庫 我們已經在`BatchConfig.java`中配置了數據源。 `BatchConfig.java` ```java @Bean public DataSource dataSource(){ EmbeddedDatabaseBuilder embeddedDatabaseBuilder = new EmbeddedDatabaseBuilder(); return embeddedDatabaseBuilder.addScript("classpath:org/springframework/batch/core/schema-drop-h2.sql") .addScript("classpath:org/springframework/batch/core/schema-h2.sql") .addScript("classpath:employee.sql") .setType(EmbeddedDatabaseType.H2) .build(); } ``` #### 創建`EMPLOYEE`表 以上配置將自動生成默認表。 要生成`EMPLOYEE`表，請創建模式文件`employee.sql`并將其放置在`resources`文件夾中。 `employee.sql` ```java DROP TABLE EMPLOYEE IF EXISTS; CREATE TABLE EMPLOYEE ( ID VARCHAR(10), FIRSTNAME VARCHAR(100), LASTNAME VARCHAR(100) ) ; ``` #### 啟用 H2 控制臺 要啟用 H2 控制臺，請向 Spring Web 注冊`org.h2.server.web.WebServlet`。 `WebConfig.java` ```java package com.howtodoinjava.demo.config; import org.h2.server.web.WebServlet; import org.springframework.boot.web.servlet.ServletRegistrationBean; import org.springframework.context.annotation.Bean; import org.springframework.context.annotation.Configuration; @SuppressWarnings({"rawtypes","unchecked"}) @Configuration public class WebConfig { @Bean ServletRegistrationBean h2servletRegistration(){ ServletRegistrationBean registrationBean = new ServletRegistrationBean( new WebServlet()); registrationBean.addUrlMappings("/console/*"); return registrationBean; } } ``` ## 示例 我們的應用程序配置完成，作業準備執行。 讓我們創建輸入 CSV 文件。 `inputData.csv` ```java id,firstName,lastName 1,Lokesh,Gupta 2,Amit,Mishra 3,Pankaj,Kumar 4,David,Miller 5,David,Walsh ``` #### 運行演示 要運行演示和批處理作業，請創建 Spring 運行應用程序類并啟動應用程序。 `App.java` ```java package com.howtodoinjava.demo; import org.springframework.batch.core.Job; import org.springframework.batch.core.JobParameters; import org.springframework.batch.core.JobParametersBuilder; import org.springframework.batch.core.launch.JobLauncher; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.scheduling.annotation.EnableScheduling; import org.springframework.scheduling.annotation.Scheduled; @SpringBootApplication @EnableScheduling public class App { @Autowired JobLauncher jobLauncher; @Autowired Job job; public static void main(String[] args) { SpringApplication.run(App.class, args); } @Scheduled(cron = "0 */1 * * * ?") public void perform() throws Exception { JobParameters params = new JobParametersBuilder() .addString("JobID", String.valueOf(System.currentTimeMillis())) .toJobParameters(); jobLauncher.run(job, params); } } ``` #### 驗證批處理作業結果 要驗證批處理作業是否成功執行，請檢查日志和 H2 控制臺。 `Console` ```java 2018-07-11 19:11:00 INFO - Job: [SimpleJob: [name=readCSVFileJob]] launched with the following parameters: [{JobID=1531316460004}] 2018-07-11 19:11:00 INFO - Executing step: [step] Inserting employee : Employee [id=1, firstName=Lokesh, lastName=Gupta] Inserting employee : Employee [id=2, firstName=Amit, lastName=Mishra] Inserting employee : Employee [id=3, firstName=Pankaj, lastName=Kumar] Inserting employee : Employee [id=4, firstName=David, lastName=Miller] Inserting employee : Employee [id=5, firstName=David, lastName=Walsh] 2018-07-11 19:11:00 INFO - Job: [SimpleJob: [name=readCSVFileJob]] completed with the following parameters: [{JobID=1531316460004}] and the following status: [COMPLETED] ``` #### H2 控制臺  H2 控制臺登錄  H2 控制臺中的數據 將我的問題放在評論部分。 學習愉快！ [下載源碼](https://howtodoinjava.com/wp-content/downloads/Spring%20Boot%20CSV%20to%20Database.zip)
